Center Grille. Removing and Installing, Audi Q3 Offroad

Audi Q3 (8U) 2011-2018 Service Manual / Body / Body Exterior / Bumpers / Center Grille. Removing and Installing, Audi Q3 Offroad

Removing

- Remove the noise insulation. Refer to → Chapter "Overview - Noise Insulation".

- Remove the front bumper cover end plate. Refer to → Chapter "Front Bumper Cover End Plate, Removing and Installing".

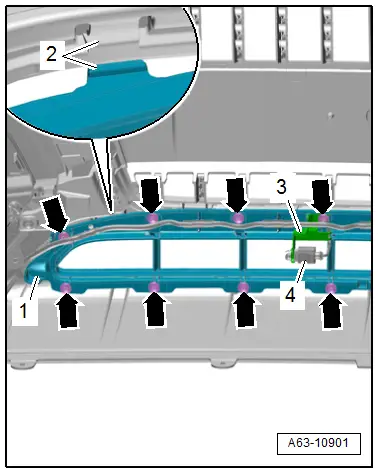

- Remove the bolts -arrows-.

- Disconnect the connector -4- and set aside the bracket -3- with the Outside Air Temperature Sensor -G17-.

- Loosen the catch -2- on the upper side of the reinforcement brace -1-.

- Remove the reinforcement brace.

  Note

The catches are not accessible.

Installing

Install in reverse order of removal. Note the following:

- Install the front bumper cover end plate. Refer to → Chapter "Front Bumper Cover End Plate, Removing and Installing".

Audi Q3. A63-10901

Center Grille, Removing and Installing, Audi Q3 S Line through MY 2014

Removing

- Remove the noise insulation. Refer to → Chapter "Overview - Noise Insulation".

- Remove the front bumper cover end plate. Refer to → Chapter "Front Bumper Cover End Plate, Removing and Installing".

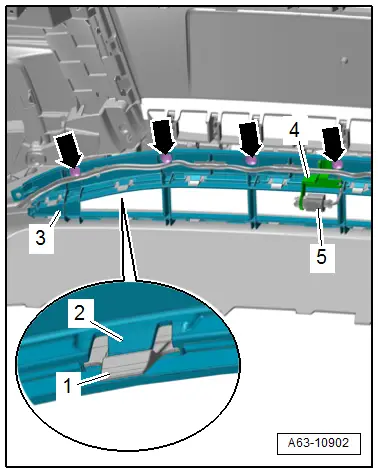

- Remove the bolts -arrows-.

- Disconnect the connector -5- and set aside the bracket -4- with the Outside Air Temperature Sensor -G17-.

- Lift the tab -2- and unlock the tabs -1-.

- Remove the center grille -3-.

Installing

Install in reverse order of removal.

Audi Q3. A63-10902

Center Grille, Removing and Installing, Audi Q3 from MY 2015

Removing

- Remove the noise insulation. Refer to → Chapter "Overview - Noise Insulation".

- Remove the front bumper cover end plate. Refer to → Chapter "Front Bumper Cover End Plate, Removing and Installing".

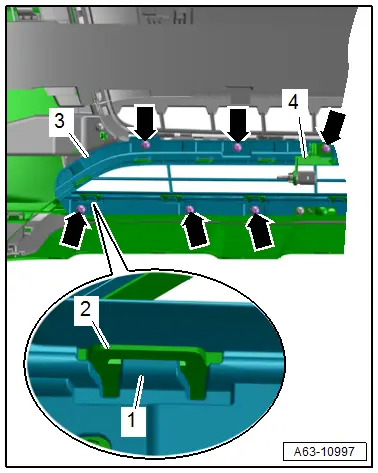

- Remove the bolts -arrows-.

- Set the bracket -4- with the Outside Air Temperature Sensor - G17- to the side.

- Release the tab -1- and lift up the securing tab -2- slightly.

- Remove the center grille -3- toward the front.

Installing

Install in reverse order of removal.

Audi Q3. A63-10997
