Audi Q3 (8U) 2011-2018 Service Manual / Electrical System / Communication / Telephone System / Connector Assignments, Cell Phone Preparation MMI, 9ZF

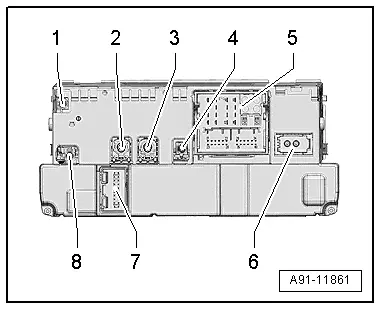

Information Electronics Control Module 1 -J794-

 1 - Not Assigned

 2 - 4-Pin Connector -T4u- to the External Audio Source Connection -R199-/Internet Access Control Module - J666-

 3 - 4-Pin Connector -T4al- to the Front Information Display Control Head -J685-

 4 - Not Assigned

 5 - Connection block with four multi-pin connectors

 6 - MOST Bus

 7 - 20-Pin Connector -T20k- to the Information Electronics Control Module 1 -J794-

 8 - Not Assigned

Audi Q3. A91-11861

  Note

Unlisted connector terminals are not assigned.

2 - 4-Pin Connector -T4u-

All pins are connected with the External Audio Source Connection -R199-/Internet Access Control Module -J666-.

 1 - D (+)

 2 - iPod recognized

 3 - D (-)

 4 - Ground

Audi Q3. A91-12091

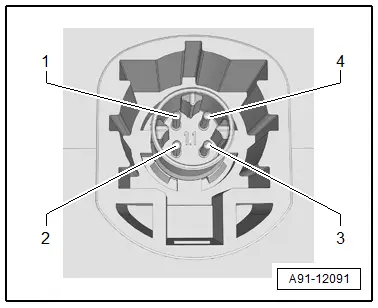

3 - 4-Pin Connector -T4al-

All pins are connected to the Front Information Display Control Head -J685-.

 1 - LVDS (-)

 2 - LIN

 3 - LVDS (+)

 4 - Ground

Audi Q3. A91-12091

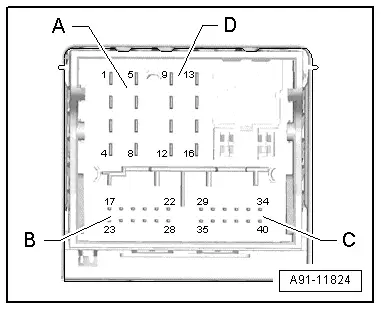

5 - Connection Block with Four Multi-Pin Connectors

A - 8-Pin Connector -T8ah-

 1 - LF mute wire from preliminary setup for cell phone preparation

 2 - Power supply to the Information Electronics Control Module 1 -J794-, 20-Pin Connector -T20k-

 3 - Wake Up to the Information Electronics Control Module 1 -J794-, 20-Pin Connector -T20k-

 4 - Not Assigned

 5 - Switch-on signal to Telephone Baseplate -R126-/Cellular Telephone Amplifier -R86-

 6 - Res MU to the Information Electronics Control Module 1 -J794-, 20-Pin Connector -T20k-

 7 - Ring-break Diagnostic Cable

Audi Q3. A91-11824

B - 12-Pin Connector -T12x-

 21 - CVBS cable (-) for the Rearview Camera System Control Module -J772-

 24 - Microphone input (+) from Microphone Unit In Front Roof Module -R164-, Telephone Microphone -R38-

 25 - Microphone input (-) from Microphone Unit In Front Roof Module -R164-, Telephone Microphone -R38-

 27 - CVBS cable (+) for the Rearview Camera System Control Module -J772-

Audi Q3. A91-11824

C -12-Pin Connector -T12k-

All pins are connected to the External Audio Source Connection -R199-.

 29 - LF-In Ground

 30 - Right LF-In

 31 - USB, +5 V. not on the Internet Access Control Module -J666-, UE2

 32 - USB, Ground

 33 - iPod, ACC Power

 34 - Detect, not on the Internet Access Control Module -J666-, UE2

 35 - Left LF-In

 36 - LF-In ground shielding

 37 - CVBS cable (+)

 38 - CVBS cable (-)

 39 - iPod data

 40 - iPod data

Following pins are also still connected with the Internet Access Control Module -J666-, UE2.

 31 - USB, +5 V

 32 - USB, Ground

 34 - Detect

Audi Q3. A91-11824

D - 8-Pin Connector -T8ao-

 10 - Data from Information Electronics Control Module 1 -J794-, 20-Pin Connector -T20k-

 11 - Data to Information Electronics Control Module 1 -J794-, 20-Pin Connector -T20k-

 12 - Terminal 31

 13 - DIAG signal from Telephone Baseplate -R126-

 14 - Res BT from Information Electronics Control Module 1 -J794-, 20-Pin Connector -T20k-

 15 - Terminal 30

 16 - Ground to Information Electronics Control Module 1 -J794-, 20-Pin Connector -T20k-

Audi Q3. A91-11824

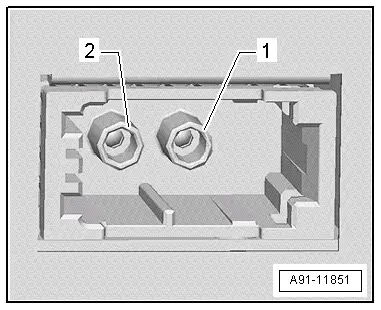

6 - MOST bus

 1 - Input

 2 - Output

Audi Q3. A91-11851

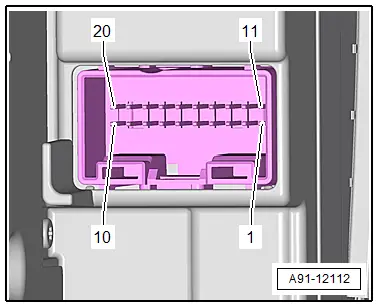

7 - 20-Pin Connector -T20k-

 6 - Wake UP to the Information Electronics Control Module 1 -J794-

 7 - Power supply from the Information Electronics Control Module 1 -J794-

 8 - Ground to the Information Electronics Control Module 1 -J794-

 13 - Res MU from the Information Electronics Control Module 1 -J794-

 14 - Res MU to the Information Electronics Control Module 1 -J794-

 15 - Information Electronics Control Module 1 -J794- data

 16 - Data from Information Electronics Control Module 1 -J794-

Audi Q3. A91-12112

Connector Assignment, Cell Phone Preparation Preliminary Setup

  Note

Unlisted connector terminals are not assigned.

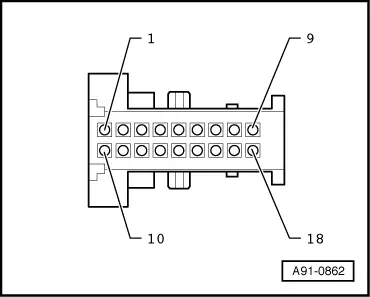

Multi-Pin Connector. 18-pin

1 - Terminal 31

4 - LF mute to the Information Electronics Control Module 1 -J794-

7 - LF (-) to Radio -R-

9 - Microphone input (-) from Microphone Unit In Front Roof Module -R164-, Telephone Microphone -R38-

10 - Terminal 15

11 - Terminal 30

16 - LF (+) to Radio -R-

18 - Microphone input (+) from Microphone Unit In Front Roof Module -R164-, Telephone Microphone -R38-

Audi Q3. A91-0862
