Audi Q3: Jump starting
Preparation
You should only perform the steps that follow if
you have the necessary tools and technical expertise.
If the engine does not start because the vehicle
battery is drained, you can jump start your vehicle
using another vehicle. Jump start cables are
needed to do this.
Both vehicle batteries must have 12 V nominal
voltage. The voltage capacity (Ah) of the vehicle
battery that is giving power must not be less
than the capacity of the drained vehicle battery.
Jump start cable
Only use a jump start cable with a large enough
diameter. Note the manufacturer's specifications.
Only use a jump start cable with insulated terminal
clamps.
Positive cable - usually red.
Negative cable - usually black.
WARNING
Note
Jump start cables can cause considerable
damage to the vehicle electrical system if
they are connected incorrectly.
Tips
- There must be no contact between the
vehicles, or else voltage could flow when
connecting the positive terminal and drain
the vehicle battery of the vehicle providing
the jump start.
- The drained vehicle battery must be connected
correctly to the electrical system.
- Switch off electrical equipment that is not
needed.
Jump starting
Both jump start cables must be connected in the
correct order.

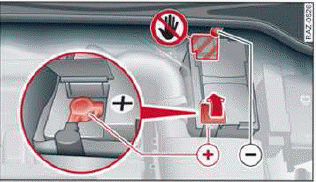

Fig. 167 Engine compartment: connectors for jump start
cables or a charger

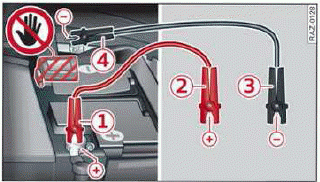

Fig. 168 Connecting the jump start cables
The jump start cable connections are located in
the engine compartment.
Follow the information about the vehicle battery.
Connecting the positive cable (red) to the
positive terminal
- Open the cover on the positive terminal
fig. 167.
1. Attach one end of the positive cable (red) to
the positive terminal on the vehicle battery 1
fig. 168.
2. Attach the other end of the positive cable
(red) to the positive terminal 2 on the power
source.
Connecting the negative cable (black) to the
negative terminal
3. Attach one end of the negative cable (black)
to the negative terminal 3 on the power
source.
4. Attach the other end of the negative cable
(black) to the ground connection 4 on the
vehicle.
Starting the engine
- Start the engine in the vehicle giving the charge
and let it run at idle.
- Now start the engine in your vehicle, which has
the drained battery.
- If the engine does not start, stop the starting
procedure after 10 seconds and then repeat it
after approximately 30 seconds.
- Turn on the rear window defogger in your vehicle
in order to reduce any voltage peaks that
may occur when disconnecting the jump start
cables. The headlights must be switched off.
- With the engines running, remove the cables in
reverse order of the way they were installed.
- Close the cover on the positive terminal.
WARNING
- Do not touch the non-insulated parts of the
terminal clamps. The cable must also not
come into contact with vehicle components
that conduct electricity when it is connected
to the positive vehicle battery terminal. This
can cause a short circuit.
- The plugs on the battery cells must not be
opened.
- Keep ignition sources (such as open flames) away from the vehicle
batteries to reduce the risk of an explosion.
- Route the jump start cables so they cannot
get caught in the moving parts in the other
vehicle's engine compartment.
Note
- Do not use the negative terminal on the vehicle
battery for jump starting. A malfunction
could occur in the vehicle electrical system.
- Please note that the connecting process:
previously described for the jump start cables
is intended for when your vehicle is being
jump started.
Tips
Make sure that the connected jump start cables
have sufficient contact with metal.
