Audi Q3: Opening and closing the luggage compartment lid with foot motion (kicking movement)

Audi Q3 (F3) 2018-2024 Owner's Manual / Starting and driving / Opening and closing / Opening and closing the luggage compartment lid with foot motion (kicking movement)

Applies to: vehicles with sensor-controlled luggage compartment lid

Opening and closing

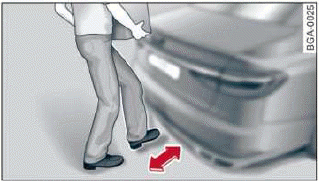

Fig. 31 Vehicle rear: foot motion (example)

The luggage compartment lid can be opened and closed automatically 1).

Requirements: you must be carrying your convenience key with you. The ignition must be switched off. You must be standing at the center behind the luggage compartment lid. Depending on vehicle equipment, it may also be possible to stand slightly off-center at the back of your vehicle.

  • Move your foot back and forth under the bumper one time fig. 37. Do not touch the bumper.

    Make sure you have firm footing. The luggage compartment lid will open or close 1) once the system detects the movement. The automatic opening or closing will be canceled if you repeat one of the movements described.

WARNING

Observe the safety precautions.

WARNING

Please note that when you have the convenience key with you, the sensor-controlled luggage compartment lid could open or close unexpectedly during activity near the rear of the vehicle. This increases the risk of an accident.

Note

Please note that when you have the convenience key with you, the sensor-controlled luggage compartment lid could open or close unexpectedly during activity near the rear of the vehicle (for example, the lid could hit the ceiling in a garage).

Tips

The luggage compartment lid will only open or close 1) if you perform the movement as described. This prevents the luggage compartment lid from opening or closing due to similar movements 1), such as when you walk between the rear of the vehicle and your garage door. In some situations, the function may be limited or temporarily unavailable.

This may happen if:

  • You are standing too close to the bumper or too far away from it
  • The luggage compartment lid was closed or opened immediately beforehand
  • You park close to a hedge and the branches move back and forth under the vehicle for a long period of time
  • You clean your vehicle, for example with a pressure washer or in a car wash
  • There is heavy rain
  • The bumper is very dirty, for example after driving on salt-covered roads
  • There is interference to the vehicle key's radio signal, such as from mobile devices or remote controls

1) The closing function applies to vehicles that also have automatic luggage compartment lid operation.

Mechanically unlocking the luggage compartment lid

The luggage compartment lid can be released from the inside in an emergency.

Opening and closing

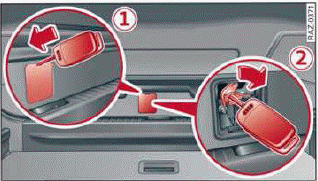

Fig. 32 Rear lid opening: access to the emergency release

  • Fold the backrest on the rear bench seat forward.
  • Fold out the vehicle key fig. 24.
  • Pry the cover off using the vehicle key 1.
  • Press the lever with the vehicle key in the direction of the arrow 2 to release the luggage compartment lid.
  • Fold the backrest backward until it locks into place.

WARNING

Observe the safety precautions.

WARNING

If you have folded the backrests into the upright position, always check if the lock is correctly engaged by pulling forward on the backrest.
