Audi Q3: Tire pressure

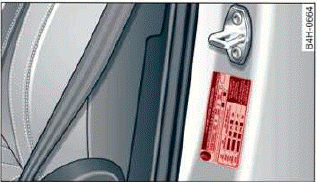

Fig. 156 Driver's side B-pillar: tire pressure
label

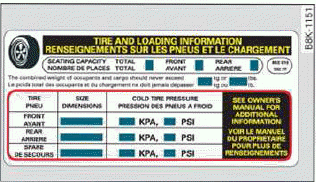

Fig. 157 Tire pressure label
The correct tire pressure for tires
installed at the factory is listed on
a label. The label is located on the
B-pillar (driver's side) fig. 156,
fig. 157.
Use the tire pressure specified for
a normal vehicle load when the
vehicle is partially loaded table.
If driving the vehicle
when fully loaded, you must increase
the tire pressure to the
maximum specified pressure.
Checking and correcting tire
pressure
- Check the tire pressure at least
once per month and also check it
before every long drive.
- Always check the tire pressure
when the tires are cold. Do not
reduce the pressure if it increases
when the tires are warm.
- Refer to the sticker fig.
157
for the correct tire pressure.
- Correct the tire pressure if necessary.
- Save the changed tire pressure.
- Check the pressure in the spare
tire (compact spare tire). Always
maintain the maximum
temperature that is specified for
the tire.
WARNING
Always adapt the tire pressure
to your driving style and the vehicle
load.
- Overloading can lead to loss of
vehicle control and increase
the risk of an accident. Read
and follow the important safety
precautions.
- The tire must flex more if the
tire pressure is too low or if the vehicle speed or load are too high. This
heats the tire up
too much. This increases the
risk of an accident because it
can cause the tire to burst and
result in loss of vehicle control.
- Incorrect tire pressure increases
tire wear and has a negative
effect on driving and braking behavior, which increases the
risk of an accident.
Note
Replace lost valve caps to reduce
the risk of damage to the
tire valves.
For the sake of the environment
Tire pressure that is too low increases
fuel consumption.

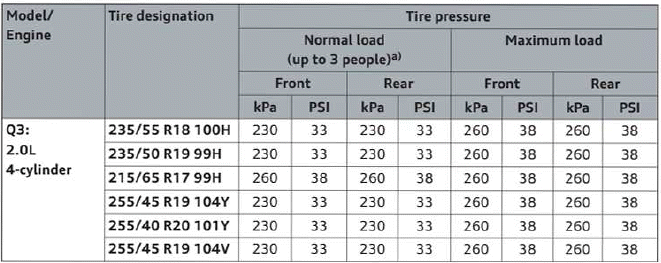

Tire pressure table
Please note that the information
contained in the following table
was correct at the time of printing,
and the information is subject
to change. If there are any
differences, you should always
follow the tire pressure sticker
fig. 156.
Make sure that the tire designation
on your tire matches the designation
on the tire pressure label
and the tire pressure table.
The following table lists recommended
tire pressures in cold
tires according to the load and
the size of the tires installed.
a) Two people in the front, one person in the rear
WARNING
Please note the important safety
precautions regarding tire
pressure and load
limits.
