Audi Q3 (8U) 2011-2018 Service Manual / Body / Body Interior / Passenger Protection, Airbags, Seat Belts / Airbag System

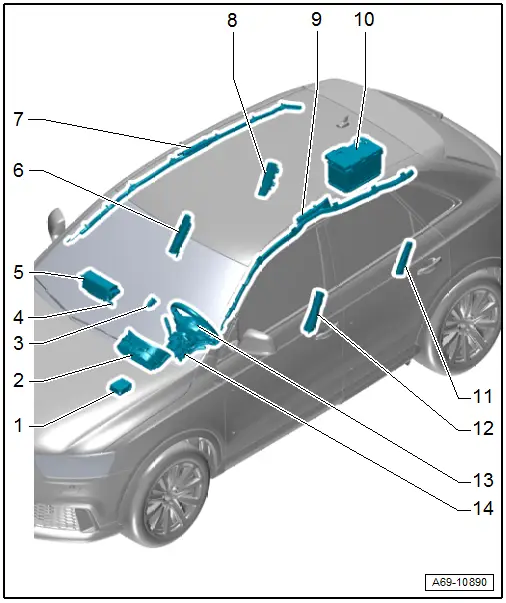

Component Location Overview - Airbag System
1 - Airbag Control Module -J234-
- Overview. Refer to → Chapter "Overview - Airbag Control Module".
2 - Airbag Indicator Lamp -K75-
- Component location: inside the instrument cluster
- Cannot be replaced separately
3 - Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- Located in a shared housing with the Emergency Flasher Button - E229-; if faulty replace the Emergency Flasher Button -E229-. Refer to → Electrical Equipment; Rep. Gr.96; Controls; Emergency Flasher Button E229 Removing and Installing.
4 - Front Passenger Airbag Deactivation Key Switch -E224-
NOT FOR NORTH AMERICAN MARKET
5 - Front Passenger Airbag
- With Front Passenger Airbag Igniter 1 -N131-
- USA and Canada market-specific with Front Passenger Airbag Igniter 2 -N132-
- Overview. Refer to → Chapter "Overview - Front Passenger Airbag".
6 - Side Airbag, Front Passenger Side
- With Front Passenger Thorax Airbag Igniter -N200-
- Overview. Refer to → Chapter "Overview - Front Side Airbag".
7 - Front Passenger Head Curtain Airbag
- with Front Passenger Head Curtain Airbag Igniter -N252-
- Overview. Refer to → Chapter "Overview - Head Curtain Airbag".
8 - Rear Side Airbag on Passenger Side
- With Passenger Side Rear Thorax Airbag Igniter -N202-
- Equipment levels
- Overview. Refer to → Chapter "Overview - Rear Side Airbag".
9 - Driver Head Curtain Airbag
- with Driver Head Curtain Airbag Igniter -N251-
- Overview. Refer to → Chapter "Overview - Head Curtain Airbag".
10 - Battery Interrupt Igniter -N253-
- Only RS Q3
- Overview. Refer to → Chapter "Overview - Battery Interrupt Igniter".
11 - Rear Side Airbag on Driver Side
- with Driver Side Rear Thorax Airbag Igniter -N201-
- Equipment levels
- Overview. Refer to → Chapter "Overview - Rear Side Airbag".
12 - Side Airbag, Driver Side
- With Driver Thorax Airbag Igniter -N199-
- Overview. Refer to → Chapter "Overview - Front Side Airbag".
13 - Driver Side Airbag
- With Driver Airbag Igniter -N95-
- Overview. Refer to → Chapter "Overview - Driver Side Airbag".
14 - Steering Column Electronics Control Module -J527-
- With Airbag Spiral Spring/Return Spring with Slip Ring -F138- and Steering Angle Sensor -G85-
- Removing and installing. Refer to → Electrical Equipment; Rep. Gr.94; Steering Column Switch Module; Steering Column Electronics Control ModuleJ527, Removing and Installing.
