Audi Q3: Interior lighting

Front interior lighting

Lights and Vision

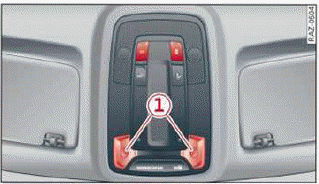

Fig. 40 Headliner: interior lighting

Interior lighting buttons

- Interior lighting on/off

- Door contact switch on/off. The interior lighting is controlled automatically.

Touch-sensitive reading lights

  • To turn a reading light on or off, touch the surface 1 briefly.
  • To activate the manual dimming function, touch the surface 1 when the light is switched off and keep touching it until the desired brightness is reached.

Rear interior lighting

Lights and Vision

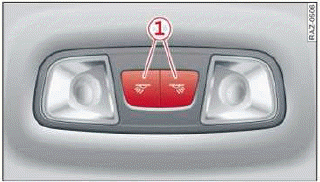

Fig. 41 Headliner: reading lights

Reading lights

  • To switch the reading lamp on or off, press the button 1.
  • To activate the manual dimming function, touch the surface while the light is switched off 1 and keep touching it until the desired brightness is reached.

Interior lighting

Applies to: vehicles with interior lighting

The ambient lighting turns on when the ignition is switched on. The ambient lighting is deactivated when the light function is OFF.

The following settings depend on the vehicle equipment.

  • Applies to MMI: Select on the home screen: VEHICLE > Light & Visibility > Interior lighting.

Possible settings:

  • Colors
  • Brightness

Display brightness

You can set the instrument and display illumination.

The settings depend on the vehicle equipment.

  • Applies to MMI: select on the home screen: SETTINGS > Display & brightness.

Possible settings:

  • Cockpit dimming
  • MMI
  • Audi virtual cockpit
